Stereoscopic Motion Pictures

Stereoscopic Motion Pictures



motion pictures whose technology makes the objects shown on the screen appear to the viewer to be three-dimensional. Stereoscopic motion pictures are frequently called three-dimensional, or 3-D, films.

Under normal conditions, each eye views a three-dimensional object at a different viewing angle. The image that appears on the retina of one eye differs somewhat from the image on the retina of the other eye. These images are disparate, that is, their contours do not coincide when one image is superimposed on the other. The transverse disparity, that is, the shift of contours along a line connecting the pupils of both eyes, creates a natural, physiological,

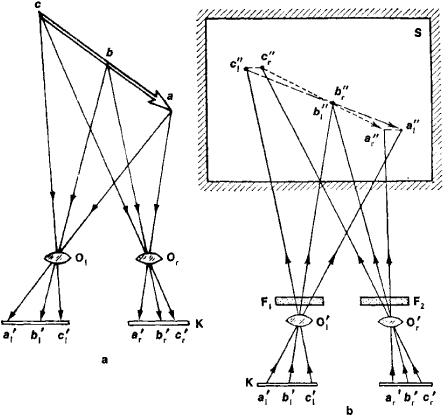

Figure 1.

Note to Figure 1. Optical diagrams of (a) stereoscopic filming and (b) stereoscopic projection: (abc) object being filmed, (O1) left camera lens, (Or) right camera lens, img0177b left projection lens, img0177c right projection lens, (F1) and (F2) selective filters, (K) film, img0177d left image of a stereopair on the film, img0177e right image of a stereopair on the film, (S) projection screen, img0179 left image on the screen img0180 right image on the screen

stereoscopic effect. Because of this effect, a human being can visually determine an object’s spatial position relative to other objects and its three-dimensional properties, relief characteristics, and certain other external features.

Stereoscopic motion pictures enable the viewer to see on the screen two separate images of the same object, photographed from two different points, with only one image seen by each eye. This result is achieved by stereoscopic methods of cinematography and by the use of stereoscopic projection equipment. Stereoscopic cinematography is, in essence, an imitation of the phenomenon of binocular vision. Stereopairs of disparate images are consecutively fixed on the motion-picture film (Figure l,a). They contain information about the three-dimensional characteristics of the object being filmed. In order to reproduce a stereoscopic film, two objectives simultaneously project the conjugate frames onto the screen, with one frame superimposed upon the other (Figure 1 ,b). An optical separating device must be used to view a three-dimensional picture. This device separates the images intended for the right and left eyes. Such devices are intended for either individual or collective use.

Figure 2.

Note to Figure 2: Viewing of a stereoscopic image through separating eyeglasses. On the screen (E), the left eye (LE) of the viewer sees through a filter img0184 the image img0184, and the right eye (RE) sees through a filter img0185 the image img0178. Point a seems to the viewer to be located in space in front of the screen at the intersection of the two viewing axes, which extend from the left eye to point aj’and from the right eye to point a” Point b is perceived as lying on the plane of the screen, and point c is perceived as located in space behind the screen.

The operating principle of individual separating devices consists in the selection of light fluxes—either spectral, polarization, or time selection. In spectral selection, the two stereoscopic images are colored in complementary colors; they are viewed through eyeglasses having two differently colored lenses of the same colors as those of the images. As a result, each eye sees its own image of the object appearing on the screen.

Figure 2 shows how a viewer perceives a three-dimensional picture by viewing the two differently colored images of a stereopair through separating eyeglasses. The polarization method of image selection is similar to the spectral method, except that the light fluxes are separated by polarized filters. In time selection, the two conjugate images of a stereopair are projected onto the screen consecutively in time. Eyeglasses with shutter mechanisms are positioned in front of the viewer’s eyes. The shutters open alternately in synchronism with the projection of the corresponding stereoscopic image on the screen. This method of stereoscopic projection has several drawbacks and has not been widely used.

Stereoscopic screens of the raster type are used as separating devices for collective three-dimensional viewing. Such screens generate regions in a plane at the eye level of the viewer, where only the right or only the left image of a stereopair can be seen. These regions, called focal zones, fan out from a common center (Figure 3,a). The width of the zones increases with greater distance from the screen. This limits the usable length of the auditorium: where the width of a zone is greater than the distance between the pupils of the viewer’s eyes, both eyes will be located in a common focal zone of the same image; where the width of two adjacent zones is less than the interpupillary distance, the viewer sees only a two-dimensional image.

An improved method of projection onto a raster screen is the stereoscopic multi-image projection method (seeINTEGRAL STEREOSCOPIC MOTION PICTURES). In this method, many images of the same object, filmed from many, successively located viewing points, are projected onto the screen, creating a multitude of adjacent focal zones in the auditorium. If the viewer moves his eyes from one pair of zones into another pair, he perceives a gradual change in the viewing angle of the object filmed (Figure 3,b). Holographic methods of projecting stereoscopic motion pictures are also being developed.

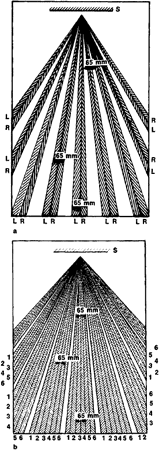

Figure 3. Focal zones in an auditorium, shown for two methods of stereoscopic projection that do not require the use of eyeglasses: (a) single-image method, (b) multi-image method. (L—R) and (1 6) are the focal zones formed by the stereopairs (L—R), (1—2), (2—3),, . ., (5—6). (S) is the screen. Short, heavy lines indicate the inter-pupillary distance (65 mm) for viewers at various locations in the auditorium.

The advantages of stereoscopic motion pictures include the lifelike reproduction of the three-dimensional shape of objects and the shininess, texture, illumination, and color of surfaces. The structure and shape of objects presented against inadequately contrasting backgrounds can also be shown.

Beginning in the late 19th century, many inventors attempted to create stereoscopic motion pictures. In 1928, E. Noaillon of Belgium showed that in principle it was feasible to achieve a stereoscopic motion-picture projection without the aid of eyeglasses by using a raster screen. However, his system and those of other inventors were very complex and found no practical applications.

The first demonstration of stereoscopic motion pictures that do not require the use of eyeglasses took place in the USSR in 1937; the method used had been proposed in 1935 by S. P. Ivanov. The motion picture The Concert, produced by Ivanov’s method and directed by A. N. Andrievskii, was shown in the Moskva Theater in 1941. Later, several stereoscopic motion pictures were shown in Moscow and other cities with a great deal of success. They included Robinson Crusoe (1947, directed by Andrievskii) and Truck 22–12 (1949, directed by V. V. Nemoliaev; the nonstereo-scopic version was released under the title Lucky Trip). Stereoscopic motion pictures requiring the use of polarized eyeglasses were first distributed on a limited scale in 1939; the Oktiabr’ Theater in Moscow is equipped to show such films. Evening in Moscow (1962, directed by Nemoliaev) was the first wide-screen, stereoscopic, filmed concert produced by the polarized method. A method of using 70-mm film for the filming and showing of stereoscopic motion pictures was developed in the USSR during the mid-1960’s; the method is applicable both to the raster screen system, which does not require the use of eyeglasses, and the polarized method, which does. Two motion pictures produced by this method were No and Yes (1967) and The Mysterious Monk (1968), both directed by A. N. Kol’tsatyi.

REFERENCES

Ivanov, B. T. Stereokinotekhnika. Moscow, 1956.
Valius, N. A. Stereoskopiia. Moscow, 1962.

N. A. VALIUS
