direct-current motor

[də¦rekt ¦kə·rənt ′mōd·ər]
An electric rotating machine energized by direct current and used to convert electric energy to mechanical energy.
McGraw-Hill Dictionary of Scientific & Technical Terms, 6E, Copyright © 2003 by The McGraw-Hill Companies, Inc.
The following article is from The Great Soviet Encyclopedia (1979). It might be outdated or ideologically biased.

Direct-Current Motor


a DC machine that operates as a motor. DC motors cost more and require greater expenditures on maintenance than AC motors. They permit, however, smooth and economical speed control within wide limits. For this reason, they have found broad application in, for example, rail and railless electrified transport, cranes, rolling mills, and automation equipment.

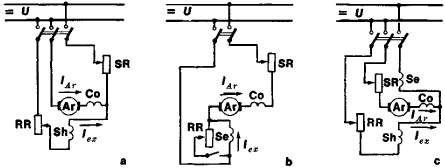

Figure 1. Methods of excitation of DC motors: (a) shunt motor, (b) series motor, (c) compound motor; (U) supply voltage, (Ar) armature, (Co) commutating-pole winding, (Sh) shunt-field winding, (Se) series-field winding, (SR) starting rheostat, (RR) regulating rheostat, (Iex) exciting current, (IAr) armature current

The principal characteristics of DC motors are (1) the dependence of the motor speed n on the shaft torque—the speed-torque characteristic—and (2) the dependence of the torque on the armature (rotor) current IAr. The shape of the characteristic curves (Figure 2) is determined by the excitation system of the motor (Figure 1). Depending on the method of excitation, DC motors are classified as separately excited (series), shunt, or compound motors. In separately excited and shunt motors, the speed varies insignificantly, and the speed-torque curve falls only slightly. Series motors are used if the speed must be variable within wide limits when a change of torque occurs. For this type of motor, the speed-torque curve drops markedly. In separately excited motors, the speed may for various reasons increase as the torque increases—with a resulting unstable operation of the motor. Compound motors are often used to assure stable operation, which can be achieved if the speed-torque curve falls with increasing torque. In this type, the main magnetic flux is provided by the shunt-field winding, and the series winding is used for stabilization. The speed-torque characteristic of compound motors is of an intermediate type.

Figure 2. Natural (without regulation of excitation) speed-torque characteristics of DC motors are shown in the upper part of the figure, and torque characteristics of DC motors are shown in the lower part: (a) shunt motor, (b) series motor, (c) compound motor; (n) motor speed, (M) torque, (IAr) armature current, (Io) no-load current

When a DC motor is connected to a power supply, the magnitude of the current in the armature winding (the starting current) exceeds the rated current by 15 to 20 times. The reason for this is that at the moment of starting the counter electromotive force of the armature is equal to zero, and the current is limited only by the resistance of the armature circuit. To reduce the starting current, a starting resistance is inserted in the armature circuit. This resistance is gradually decreased as the speed increases. After the start-up is completed, the resistance is short-circuited.

Shunt motors have a speed range of approximately three to one. A rheostat in the field circuit is the most convenient and inexpensive means for adjusting the speed of such machines. The speed can be increased or decreased with the efficiency remaining sufficiently high at all speeds.

In series motors, the speed can be decreased by a rheostat in the armature circuit and increased by connecting a shunt resistance in parallel with the field winding. The losses in the rheostat inserted in the armature circuit lower the efficiency substantially. Shunting the field winding does not change the efficiency substantially.

In the USSR DC motors are manufactured in standard series. For example, series DK features power ratings of 40 to 110 kilowatts (kW) at voltages of 250, 350, and 750 volts (V); speed can be varied from 0 to 4,000 rpm. This series is used for electrified urban transport systems. Series D has power ratings of 2.5 to 185 kW at voltages of 220 and 440 V and a speed range of three to one. Series D is used, for example, in drives for high-power rolling mills and for all types of cranes. Electric drives that use DC microelectric motors are widely used in automatic control systems and in electric household appliances. The main advantage of such motors over AC motors is a considerably greater range and precision of speed control.


See references under


The Great Soviet Encyclopedia, 3rd Edition (1970-1979). © 2010 The Gale Group, Inc. All rights reserved.

Direct-current motor

An electric rotating machine energized by direct current and used to convert electric energy to mechanical energy. It is characterized by its relative ease of speed control and, in the case of the series-connected motor, by an ability to produce large torque under load without taking excessive current. See Electric rotating machinery

The principal parts of a dc motor are the frame, the armature, the field poles and windings, and the commutator and brush assemblies. The frame consists of a steel yoke of open cylindrical shape mounted on a base. Salient field poles of sheet-steel laminations are fastened to the inside of the yoke. Field windings placed on the field poles are interconnected to form the complete field winding circuit. The armature consists of a cylindrical core of sheet-steel disks punched with peripheral slots, air ducts, and shaft hole. These punchings are aligned on a steel shaft on which is also mounted the commutator. The commutator, made of hard-drawn copper segments, is insulated from the shaft. Segments are insulated from each other by mica. Stationary carbon brushes in brush holders make contact with commutator segments. Copper conductors placed in the insulated armature slots are interconnected to form a reentrant lap or wave style of winding. See Commutation, Windings in electric machinery

Rotation of a dc motor is produced by an electromagnetic force exerted upon current-carrying conductors in a magnetic field. For basic principles of motor action See Motor.

Direct-current motors may be categorized as shunt, series, compound, or separately excited.

The field circuit and the armature circuit of a dc shunt motor are connected in parallel. The field windings consist of many turns of fine wire. The entire field resistance, including a series-connected field rheostat, is relatively large. The field current and pole flux are essentially constant and independent of the armature requirements. The torque is therefore essentially proportional to the armature current. Typical applications are for load conditions of fairly constant speed, such as machine tools, blowers, centrifugal pumps, fans, conveyors, wood- and metal-working machines, steel, paper, and cement mills, and coal or coke plant drives.

The field circuit and the armature circuit of a dc series motor are connected in series. The field winding has relatively few turns per pole. The wire must be large enough to carry the armature current. The flux of a series motor is nearly proportional to the armature current which produces it. Therefore, the torque of a series motor is proportional to the square of the armature current, neglecting the effects of core saturation and armature reaction. An increase in torque may be produced by a relatively small increase in armature current. Typical applications of this motor are to loads requiring high starting torques and variable speeds, for example, cranes, hoists, gates, bridges, car dumpers, traction drives, and automobile starters.

A compound motor has two separate field windings. One, generally the predominant field, is connected in parallel with the armature circuit; the other is connected in series with the armature circuit. The field windings may be connected in long or short shunt without radically changing the operation of the motor. They may also be cumulative or differential in compounding action. With both field windings, this motor combines the effects of the shunt and series types to an extent dependent upon the degree of compounding. Applications of this motor are to loads requiring high starting torques and somewhat variable speeds, such as pulsating loads, shears, bending rolls, plunger pumps, conveyors, elevators, and crushers. See Direct-current generator

The field winding of a separately excited motor is energized from a source different from that of the armature winding. The field winding may be of either the shunt or series type, and adjustment of the applied voltage sources produces a wide range of speed and torque characteristics. Small dc motors may have permanent-magnet fields with armature excitation only. Such motors are used with fans, blowers, rapid-transfer switches, electromechanical activators, and programming devices.

McGraw-Hill Concise Encyclopedia of Engineering. © 2002 by The McGraw-Hill Companies, Inc.
