Double Refraction


splitting of a light ray in an anisotropic medium (for example, in a crystal) into two components, which are propagated at different speeds and are polarized in two mutually perpendicular planes. Double refraction was first discovered and described by the University of Copenhagen professor E. Bartholin in 1669 in a crystal of Iceland spar. A pencil of light that is incident at right angles to the crystal’s surface is broken down into two pencils, one of which continues along its original path without refraction, as in an isotropic medium, while the other is deflected to one side, thus violating the usual law of light refraction (Figure 1). Accordingly, the rays of the first pencil are called ordinary rays, whereas the rays of the second pencil are called extraordinary rays. The angle formed by the ordinary and extraordinary rays is called the angle of double refraction. If, in the case of the perpendicular incidence of the pencil, the crystal is rotated about the pencil, then the trace of the ordinary ray remains stationary in the center, and that of the extraordinary ray rotates about a circle.

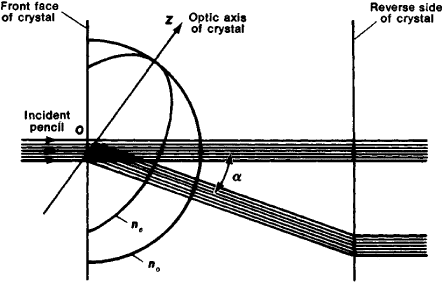

Figure 1. Double refraction in uniaxial crystal during perpendicular incidence of pencil of light rays onto the front face of crystal. Ordinary ray is not refracted. Extraordinary ray is refracted by the angle of double refraction ɑ, n0 is the index of refraction of ordinary wave, independent of direction, and ne, is the index of refraction of extraordinary wave, which is dependent on direction.

Double refraction can also be observed at an oblique incidence of the light ray onto the crystal surface. Iceland spar and some other crystals contain only one direction along which double refraction does not take place. This direction is called the optic axis of the crystal, and crystals of this type are called uniaxial crystals.

The direction of the electrical vector vibrations in an extraordinary ray lies within the plane of the main cross section (passing through the optic axis and the light ray), which is the plane of polarization. The violation of the laws of refraction in the extraordinary ray is related to the fact that the rate of propagation of the extraordinary wave and, hence, also its index of refraction ne depend on the direction. For the ordinary wave, polarized in the plane that is perpendicular to the main cross section, the index of refraction no is the same in all directions. If vectors are drawn from the point O (see Figure 1) having lengths equal to the values of ne and n0 in various directions, then the geometric loci of these vectors form a sphere for the ordinary wave and an ellipsoid for the extraordinary wave (surfaces of the index of refraction).

Table 1 shows that the double refraction characterized by

Table 1. Indexes of refraction for ordinary no and extraordinary ne waves of some uniaxial crystals (for the yellow line of sodium at room temperature)
Crystaln0nemin△ = nemin - n0
Iceland spar...............1.658361.48639-0.17197
Sodium nitrate............... 1.5871.336-0.251

the quantity and sign of Δ may be either positive or negative. Accordingly, positive and negative (uniaxial) crystals are distinguished.

In transparent crystals, the intensities of the ordinary and extraordinary rays are practically the same, if the incident light is natural. Separating one of the rays resulting from double refraction with a diaphragm and passing it through a second crystal again results in double refraction. However, the intensities of the ordinary and the extraordinary rays will be, in this case, different because the incident ray is polarized. The ratio of intensities depends on the mutual orientation of the crystals expressed by the angle Ф, which is formed by the planes of the main cross sections of both crystals (planes passing through the optic axis and the light ray). If Ф = 0° or 180°, then only the ordinary ray remains. At Ф = 90°, however, only the extraordinary ray remains. At Ф = 45°, the intensity of both rays is the same.

In the general case, the crystal may have two optic axes, that is, two directions along which double refraction is absent. In biaxial crystals, both rays generated by double refraction behave as extraordinary rays.

Measurement of Δ in those cases when double refraction is large may be performed by a direct determination of the indexes of refraction using prisms or special crystal refrac-tometers, which make it possible to perform measurements in various directions. In many cases (particularly for thin layers of anisotropic substances), when the spatial separation of the two rays is so small that it is impossible to determine no and ne the measurements are made by observing the nature of the polarization of light as it passes through a layer of an anisotropic substance.

Double refraction is explained on the basis of the special features of electromagnetic wave propagation in anisotropic mediums. The electric field of the light wave E, penetrating into a substance, generates forced vibrations of the electrons in the atoms and molecules of the medium. The vibrating electrons are, in turn, sources of the secondary emission of light. Thus, the passage of a light wave through matter is a result of the sequential reemission of light by the electrons. In an anisotropic substance, vibrations of electrons are excited more easily in certain definite directions. For this reason, waves with various polarizations will be propagated with different velocities in anisotropic substances.

In addition to crystals, double refraction is observed in artificially anisotropic mediums (in glass, liquid, and other materials) placed in an electric field (Kerr effect) and in a magnetic field (Cotton-Mouton effect), under mechanical stress, and under similar conditions. In these cases, the medium becomes optically anisotropic and the optic axis is parallel to the direction of the electric field, magnetic field, and so forth.


Landsberg, G. S. Optika, 4th ed. Moscow, 1957. (Obshchii kurs fiziki, vol. 3.)
Pohl, R. W. Optika i atomnaia fizika. Moscow, 1966. (Translated from German).
