phased array

An array of separate radio elements, such as dipoles or dish antennas, connected together so as to behave as one large antenna. The beam of the array can be steered across the sky by adjusting the relative phases of signals from the elements. The adjustment does not involve mechanical movement and can be done very quickly, making the technique particularly useful for terrestrial radar. Radio interferometers such as the VLA are sometimes configured as sensitive phased arrays to detect weak transmissions from distant space probes.

Phased Array


an antenna array in which the phases or phase shifts of the waves emitted or received by the radiating elements are controlled.

Phase control, or phasing, makes it possible to form the requisite radiation pattern—for example, a beam—with a large variety of radiator arrangements, to vary the beam direction of a fixed array, and to perform rapid—and in some cases, practically inertialess—scanning (for example, seeSCANNING). The shape of the radiation pattern can be controlled within given limits; that is, the beam width and side-lobe level can be varied. For this purpose, the amplitudes of the waves from individual radiators in a phased array are sometimes also controlled. These and certain other properties of phased arrays, together with the possibility of using computers and present-day means of automation to control the arrays, are the reasons why such arrays are both promising and widely used in, for example, radio communication, radar, radio navigation, and radio astronomy. Phased arrays with a large number of controlled elements—sometimes 104 or more elements—are components of various ground-based (both fixed and mobile), shipborne, airborne, and spaceborne radio devices. Much research is being carried out to develop further the theory and technology of phased arrays and to extend the use of the arrays.

Structure. The shapes, sizes, and designs of present-day phased arrays are highly diverse. The differences are defined by both the type of radiators used and the way in which the radiators are arranged (Figure 1). The sector scanned by a phased array is determined by the radiation pattern of the array’s radiators. Low-gain radiators are usually employed in phased arrays in which the beam is rapidly swept through a wide angle. The radiators may be symmetrical or asymmetrical dipoles, frequently with one or more reflectors—for example, as a common reflector for an entire array. They may also be the open ends of wave guides or slot, horn, helical or spiral, dielectric-rod, log-periodic, or other antennas. Large phased arrays sometimes consist of individual small arrays called modules; the radiation pattern of the modules is directed in the same direction as the main beam of the entire array. Mechanically steerable high-gain antennas—for example, fully steerable reflectors—are used as radiators in many cases, such as when slow beam steering is permissible. In such arrays, beam steering is accomplished by steering all the antennas and phasing the radiated waves; phasing of the antennas makes it possible to steer the beam rapidly within the limits of the radiation pattern of the antennas.

Depending on the required pattern shape and the requisite three-dimensional scanning sector, various arrangements of the radiating elements are used. The elements may be arranged along a straight line or an arc, in a given volume, or over a flat, cylindrical, or spherical surface. Phased arrays in which the elements are arranged on a flat surface are called planar arrays; if the elements are arranged in a given volume, the arrays are known as volume arrays. The shape of a phased array’s radiating surface, or aperture (seeRADIO WAVES, RADIATION AND RECEPTION OF), is sometimes determined by the configuration of the object on which the array is mounted—for example, by the shape of an artificial earth satellite. Phased arrays with an aperture shaped like a given object are sometimes called conformal arrays.

Planar phased arrays are widely used; in such arrays, the beam may scan from the direction perpendicular to the plane of the aperture—as in a broadside array—to the direction parallel to the plane of the array—as in a traveling-wave antenna. The front-to-back ratio of a planar phased array decreases when the beam is steered away from the direction perpendicular to the plane of the aperture. To provide for wide-angle scanning—that is, for scanning through large solid angles of up to 4π steradians—without a substantial decrease in the front-to-back ratio, a phased array with a nonplanar aperture, such as a spherical aperture, or a system of planar arrays oriented in different directions is used. In such systems, scanning is accomplished by exciting and phasing appropriately oriented radiators.

According to the way in which the radiators are distributed in the aperture, a phased array may be uniformly or nonuniformly spaced. In uniformly spaced phased arrays, the spacing between adjacent elements is the same over the entire aperture. In uniformly spaced planar phased arrays, the radiators are mostly located at the nodes of a rectangular array, yielding a rectangular arrangement, or at the junctions of a triangular network, yielding a hexagonal arrangement. In uniformly spaced phased arrays, a fairly small radiator spacing—often smaller than the operating wavelength—is chosen, so that a radiation pattern with a single major lobe (that is, a pattern without spurious diffraction maxima, or grating lobes) and low side-lobe levels may be formed in the sector to be scanned. However, to form a narrow beam in a large-aperture phased array, a large number of elements must be used. In nonuniformly spaced phased arrays, the elements are located at dissimilar distances from one another; for example, the spacing may be random. Even with a large spacing between adjacent elements, the formation of grating lobes can be avoided, and a radiation pattern with a single major lobe can be obtained, in such arrays. In the case of large apertures, a very narrow beam can be formed with a relatively small number of elements. However, such nonuniformly spaced large-aperture phased arrays with a small number of radiators have a higher side-lobe level and, correspondingly, a lower front-to-back ratio than phased arrays with a large number of elements. For the same power radiated by the individual elements, a radiation pattern with a lower side-lobe level can be obtained in nonuniformly spaced phased arrays with a small interelement spacing than in uniformly spaced arrays with the same aperture and the same number of elements; such a radiation pattern results from the nonuniform distribution of radiation density in the antenna aperture.

Figure 1. Schematic diagrams of some phased arrays: (a) a uniformly spaced linear array with symmetrical dipoles and a common reflector, (b) a nonuniformly spaced linear array with fully steerable parabolic reflectors, (c) a planar array with horn radiators in a rectangular arrangement, (d) a planar array with dielectric-rod radiators in a hexagonal arrangement, (e) a conformal array with slot radiators, (f) a spherical array with spiral radiators, (g) a system of planar arrays; (D) dipoles, (F) feeders, (R) reflector, (A) reflector antennas, (H) horns, (EW) exciting wave guide, (S) metallic shield, (SR) slot radiators, (C) conical array, (CA) cylindrical array, (Sp R) spiral radiators, (SS) spherical shield, (P) planar array with the radiators represented by dots, (l0) dipole spacing, (l1, l2, l3) antenna spacings

Phase-shift control. Depending on the method used to vary the phase shifts, phased arrays are classified as electromechanically scanned, frequency-scanned, or electrically scanned. Electromechanical scanning is accomplished, for example, by changing the shape of the exciting wave guide (Figure 2, a). Frequency scanning exploits the frequency dependence of the phase shifts, which is caused by, for example, the length of the feeder between adjacent radiators (Figure 2, b) or the wave dispersion in the wave guide. Electrical scanning is accomplished by means of phase-shift circuits or phase shifters, which are controlled by electronic signals (Figure 2, c) with a continuous or discrete phase-shift variation.

Electrically scanned phased arrays are the most versatile arrays. They provide various phase shifts and change the phase shifts at a considerable speed with relatively low power losses. Ferrite and semiconductor phase shifters, which operate in time intervals of the order of microseconds and have power losses of about 20 percent, are widely used in present-day phased arrays at microwave frequencies. The operation of the phase shifters is controlled by a high-speed electronic system that, in the simplest cases, controls a group of elements, for example, the rows and columns in a planar array with a rectangular arrangement of the radiators; in more complicated cases, each phase shifter is controlled separately. The beam may be steered in three dimensions either in accordance with a previously specified law or in accordance with a program that is elaborated during the operation of

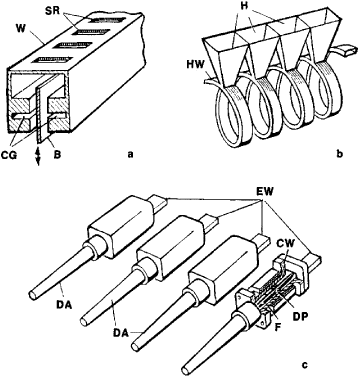

Figure 2. Examples of phased arrays with different types of scanning-. (a) an electromechanically scanned array, (b) a frequency-scanned array, (c) an electrically scanned array; (SR) slot radiators, (W) rectangular exciting wave guide, (B) blade whose insertion into the wave guide is controlled, used for changing the phase velocity of a wave in the wave guide, (CG) choke grooves, (H) horns, (HW) helical wave guide, (DA) dielectric-rod antennas, (F) ferrite core of a phase shifter, (EW) exciting wave guides, (CW) control winding of a phase shifter, (DP) dielectric plate

the overall radio device of which the array is a component.

Design features. The radiators in a phased array are excited (Figure 3) by means of either feeder lines or free space waves. Quasi-optical phased arrays use free space waves. The exciting feeder circuits sometimes contain both phase shifters and complicated electrical devices called pattern-forming circuits, which excite all the radiators from several inputs so that scanning beams corresponding to the inputs may be simultaneously produced in three dimensions, as in multibeam phased arrays. Essentially two types of quasi-optical phased arrays are distinguished: lenses and reflectors. In lenses, the phase shifters and radiators are excited, with the aid of secondary radiators, by waves emitted from a common exciter. In reflectors, the main and secondary radiators are integrated, and the reflectors are mounted at the phase-shifter outputs. Multibeam quasi-optical phased arrays contain several exciters, each of which corresponds to a three-dimensional beam. In some cases, focusing devices, such as reflectors or lenses, are used to form the radiation pattern. The phased arrays discussed above are sometimes called passive arrays.

Figure 3. Typical excitation schemes: (a) for a phased array with series excitation, (b) for a phased array with shunt excitation, (c) for a multibeam phased array, (d) for a quasi-optical phased-array lens, (e) for a quasi-optical phased-array reflector; (EF) exciting feeder, (R) radiators, (TR) terminating resistor, (B) beam, or radiation pattern, (l1–l4) array inputs, (PC) pattern-forming circuit, (MR) main radiators, (SR) secondary radiators, (IR) integrated resistors, (E) exciter, (Rf) reflector, (φ) phase shifter. The dashed lines represent the plane electromagnetic wave emitted by an array. The broken lines represent the spherical electromagnetic wave emitted by an exciter.

Active phased arrays offer the greatest possibilities for control. In such arrays, a transmitter or receiver that is controlled with respect to phase or sometimes amplitude is connected to each radiator or module (Figure 4). The phase of active arrays may be controlled in the intermediate-frequency channels or in the exciting circuits of, for example, coherent transmitters or local oscillators. Thus, the phase shifters in active arrays may operate in wavelength ranges that differ from the antenna’s frequency band. In many cases, the power losses in the phase shifters have no direct effect on the main signal level. Active transmitting phased arrays make it possible to combine in space the power radiated by the coherent electromagnetic waves excited by the individual transmitters. In active receiving phased arrays, the joint processing of the signals received by the individual elements makes it possible to obtain more complete information about the sources of the radiation.

As a result of the direct interaction between the radiators, the characteristics of a phased array, such as the matching of the radiators and feeders and the front-to-back ratio, change as the beam is steered. Special methods of compensating for the mutual impedance between the elements of a phased array are sometimes used to prevent the harmful effects of the mutual impedance.

Future development. The most important trends in the future development of the theory and technology of phased arrays include

(1) the widespread introduction of phased arrays with a large number of elements into radio devices and the development of new types of elements, particularly for active arrays;

(2) the development of methods for building large-aperture phased arrays, including unequally spaced arrays with high-gain antennas distributed over an entire hemisphere of the earth, thus yielding a global radio telescope;

Figure 4. Schematic diagrams of some active phased arrays: (a) a transmitting array, (b) a receiving array with phasing in the local-oscillator circuits, (c) a receiving array with phasing in the intermediate-frequency channels; (R) radiator, (PA) power amplifier, (E) exciter, (M) mixer, (L) local oscillator, (IFA) intermediate-frequency amplifier, (SD) summing device, (φ) phase shifter

(3) the further development of methods and techniques for reducing the harmful effects of mutual impedance between the array elements;

(4) the development of a design theory and of methods for computer designing of phased arrays;

(5) the development of a theory and the introduction into practice of new methods of processing the information received by the elements of a phased array and using the information to control the array, especially for the automatic phasing of the elements, as in self-phasing array systems, or for varying the shape of the radiation pattern, for example, by reducing the side-lobe level in the directions of sources of interference, as in adaptive array systems;

(6) the development of control methods for the independent steering of the individual beams in multibeam phased arrays.


Vendik, O. G. Antenny s nemekhankheskim dvizheniem lucha. Moscow, 1965.
Skaniruiushchie antennye sistemy SVCh, vols. 1–3. Moscow, 1966–71. (Translated from English.)


phased array

[′fāzd ə′rā]
An array of dipoles on a radar antenna in which the signal feeding each dipole is varied so that antenna beams can be formed in space and scanned very rapidly in azimuth and elevation.
