# Heat Flow

## heat flow

[′hēt ‚flō]
(thermodynamics)
Heat thought of as energy flowing from one substance to another; quantitatively, the amount of heat transferred in a unit time. Also known as heat transmission.

## Heat Flow

the amount of heat transferred across an isothermal surface in a unit time. Heat flow has the same dimensions as power and is measured in watts (W) or kilocalories per hour (kcal/hr); 1 W = 0.86 kcal/hr.

The amount of heat transferred across an isothermal surface of unit area in a unit time is called the heat flux. It is usually designated

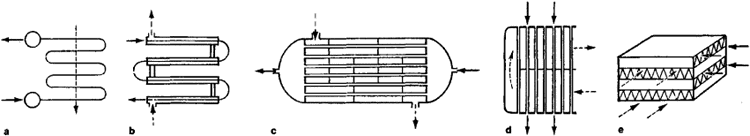

Figure 1. Designs of recuperative heat exchangers: (a) coiled tubular heat exchanger, (b) double-pipe heat exchanger, (c) shell-and-tube heat exchanger, (d) tubular air heater, (e) plate-fin heat exchanger

by q and is measured in W/m2 or kcal/(m2·hr). Heat flux is a vector. The magnitude of any component of this vector is equal to the amount of heat transferred in a unit time across a surface of unit area perpendicular to the direction of the component. In English, the term “heat flux” is sometimes used in the sense of “heat flow.”

## heat transfer

The flow of heat from one body at higher temperature to another body at a lower temperature, until the two temperatures are equal.
