edge connector


Also found in: Wikipedia.

edge connector

[′ej kə‚nek·tər]
(electronics)
A row of etched lines on the edge of a printed circuit board that is inserted into a slot to establish a connection with another printed circuit board.

edge connector

The protruding part of an expansion card that is inserted into an expansion slot. It contains a series of printed lines that go to and come from the circuits on the board. The number of lines (pins) and the width and depth of the lines are different on the various interfaces (ISA, EISA, PCI, Micro Channel, etc.).


Edge Connector
Edge connectors are very popular because they are "printed" onto the outer layers of the board in the same process that creates the circuit lines.








Plug In Cartridges

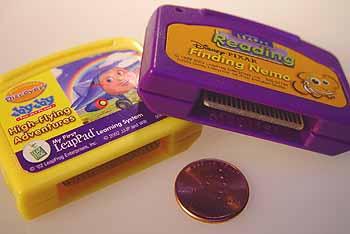

Edge connectors provide a simple connection mechanism for cartridges such as these educational programs for preschoolers.
